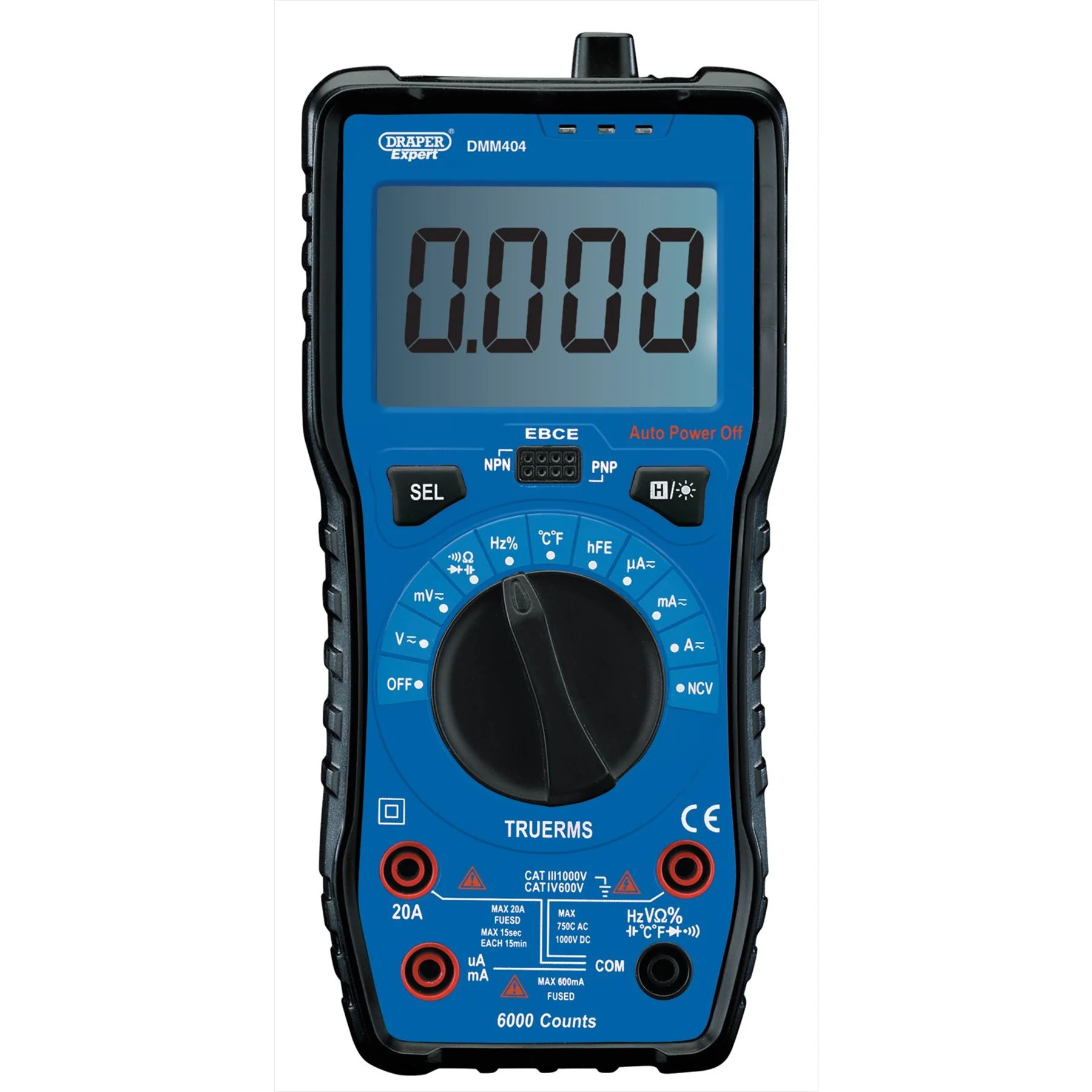

Draper 92433 Auto & Manual Ranging Digital Multimeter

Product image 1

Draper 92433 Auto & Manual Ranging Digital Multimeter

Auto-ranging CAT IV multimeter. Equipped with a high-performance MCU processor for more accurate measurements. Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions. Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light. An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles. Supplied with 9V battery and a carry case.
  • AC Voltage 600mV/6V/60V/600V/750V
  • Automatic Power Off Yes
  • Capacitance 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
  • DC Current 60uA/600uA/6000uA/60mA/600mA/20A
  • DC Voltage 600mV/6V/60V/600V/0.1V/1000V
  • Diode on/off Test Yes
  • Dimensions 190mm x 90mm x 50mm
  • Duty Ratio Yes
  • Dwell N/A
  • Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
  • Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Symbol Unit Data Hold Yes
  • TACH N/A
  • Temperature Range -20°C - 1000°C/-4°F - 1832°F
  • Weight 380g (approx.)
  • Battery Type 1 x PP3 9V (not supplied)
Manufacturer’s Warranty: 12 months
$16.10

Original: $46.00

-65%
Draper 92433 Auto & Manual Ranging Digital Multimeter

$46.00

$16.10

Product Information

Shipping & Returns

Description

Auto-ranging CAT IV multimeter. Equipped with a high-performance MCU processor for more accurate measurements. Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions. Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light. An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles. Supplied with 9V battery and a carry case.
  • AC Voltage 600mV/6V/60V/600V/750V
  • Automatic Power Off Yes
  • Capacitance 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
  • DC Current 60uA/600uA/6000uA/60mA/600mA/20A
  • DC Voltage 600mV/6V/60V/600V/0.1V/1000V
  • Diode on/off Test Yes
  • Dimensions 190mm x 90mm x 50mm
  • Duty Ratio Yes
  • Dwell N/A
  • Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
  • Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
  • Symbol Unit Data Hold Yes
  • TACH N/A
  • Temperature Range -20°C - 1000°C/-4°F - 1832°F
  • Weight 380g (approx.)
  • Battery Type 1 x PP3 9V (not supplied)
Manufacturer’s Warranty: 12 months
